Bearing Supply NACHI 6206 2NSE9C3 Deep Groove Ball Bearing

Detail

Deep groove ball bearing is the most common type of rolling bearing.

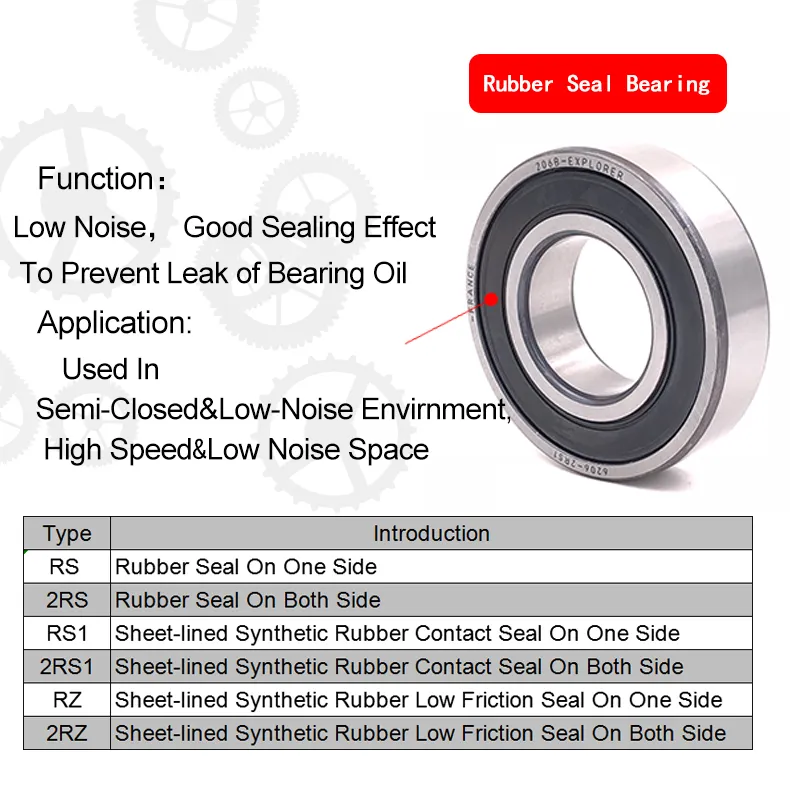

The basic type of deep groove ball bearing consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two kinds of structure, open refers to the bearing without sealing structure, sealing type deep groove ball is divided into dust seal and oil seal. The dust proof sealing cover is made of steel plate stamping, which only prevents dust from entering the bearing raceway. The oil-proof type is contact oil seal, which can effectively prevent the grease spillover in the bearing.

Model	d mm	D mm	H mm	W kg	Dynamic	Static
6200	10	30	9	0.032kg	5100	2400
6201	12	32	10	0.036kg	6800	3050
6202	15	35	11	0.044kg	7650	3750
6203	17	40	12	0.065kg	9550	4800
6204	20	47	14	0.11kg	12800	6650
6205	25	52	15	0.13kg	14000	7850
6206	30	62	16	0.21kg	19500	11300
6207	35	72	17	0.288	25700	15400
6208	40	80	18	0.368	29100	17800
6209	45	85	19	0.416	32700	20300
6210	50	90	20	0.463	35100	23300
6211	55	100	21	0.603	43500	43500
6212	60	110	22	0.789	52500	52500
6213	65	120	23	0.99	57500	40100
6214	70	125	24	1.084	62000	62000
6215	75	130	25	1.171	67400	66000
6216	80	140	26	1.448	72700	72500
6217	85	150	28	1.803	84000	64000
6218	90	160	30	2.71	96100	71500
6219	95	170	32	2.62	109000	82000
6220	100	180	34	3.19	122000	93000
6221	105	190	36	3.78	133000	105000
6222	110	200	38	4.42	144000	117000
6224	120	215	40	5.3	155000	131000
6226	130	230	40	6.12	167000	146000
6228	140	250	42	7.77	166000	150000
6230	150	270	45	9.78	176000	168000
6232	160	290	48	12.22	185000	186000
6234	170	310	52	15.241	212000	224000
6236	180	320	52	15.581	227000	242000
6238	190	340	55	18.691	255000	282000
6240	200	360	58	22.577	269000	311000
