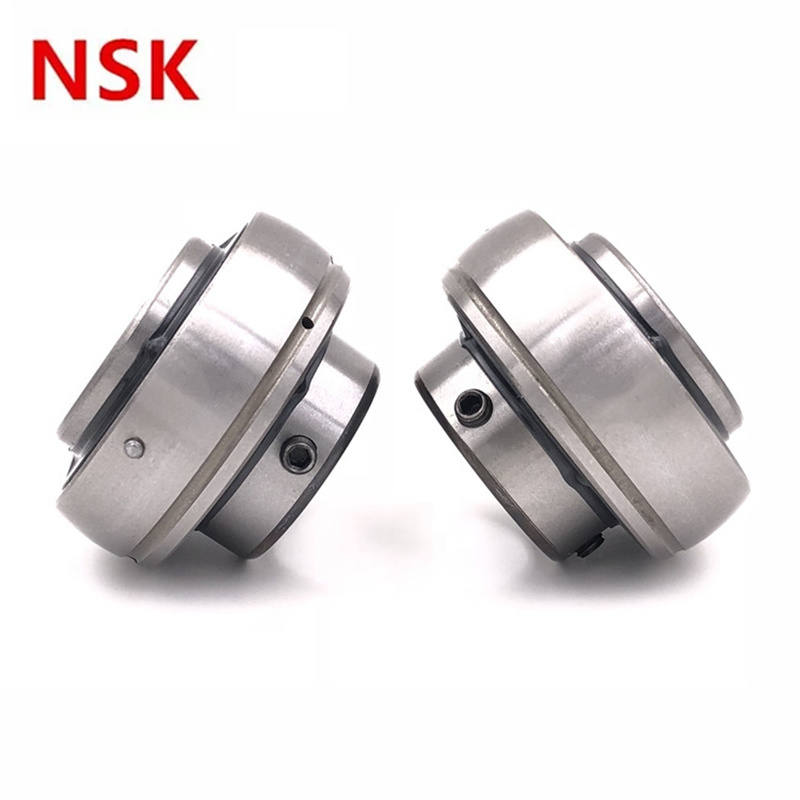

Insert Bearing NSK Brand UC Series UC305 Pillow Block Bearing

Detail

Pillow Block Bearing Introduction:

Insert bearing with housing is a bearing unit that combines rolling bearings with bearing seats.

Pillow block bearing , namely outer spherical bearings. It belongs to the deep groove ball bearing, inside the rolling body for the steel ball; Its outer ring surface is spherical, so it is called pillow block bearing.

Pillow block bearing with seats are usually with bolts, which are convenient to be fixed in the place where they should be fixed. There are also slider type and frame type, which are fixed by clamping, and overhang type and suspension type, which are usually with threads, which are convenient to be fixed in the rod end or suspended in the air.

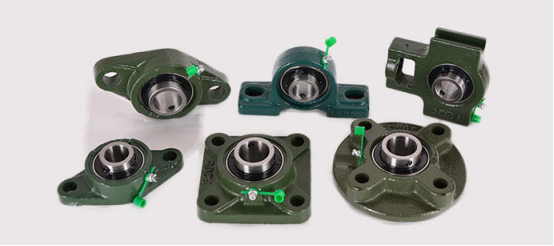

At the same time, this kind of bearing is also designed with a certain centrality, easy to install, with a double structure of sealing device, can work in harsh environment. The bearing seat is generally molded by casting. Commonly used seat is vertical seat (P), square seat (F), boss square seat (FS), boss round seat (FC), diamond seat (FL), ring seat (C), slide block seat (T).

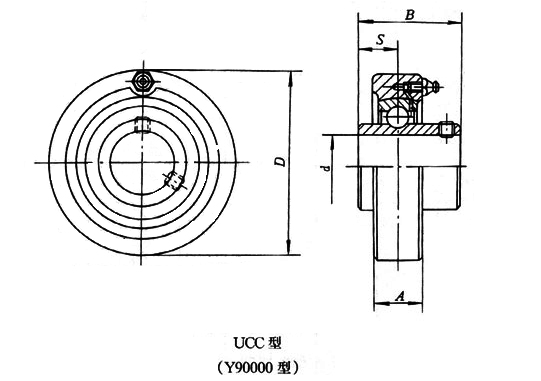

Model	d mm	D mm	H mm	W kg
UC305	25	62	38	0.44
UC306	30	72	43	0.56
UC307	35	80	48	0.71
UC308	40	90	52	1
UC309	45	100	57	1.28
UC310	50	110	61	1.65
UC311	55	120	66	2.07
UC312	60	130	71	2.59
UC313	65	140	75	3.15
UC314	70	150	78	3.83
UC315	75	160	82	4.59
UC316	80	170	86	5.4
UC317	85	180	96	6.58
UC318	90	190	96	7.34
UC319	95	200	103	8.7
UC320	100	215	108	10.8
UC321	105	225	112	12.2
UC322	110	240	117	28.5
UC324	120	260	126	18.5
UC326	130	280	135	23

UC200 series (light series), UC300 series (heavy series), and deformation products UB(SB)200 series, if the use environment is small, generally choose UC200 series, on the contrary, choose UC300 series. Generally, there are two top silk on the outer spherical ball bearing, and the included Angle is 120°. It is characterized by using top silk to top on the shaft when matching with the shaft, so as to play a fixed role, but the environmental requirements of its matching must be small vibration range.

This kind of outer spherical ball bearing is more common, widely used in textile machinery, ceramic machinery and other manufacturing industries.
